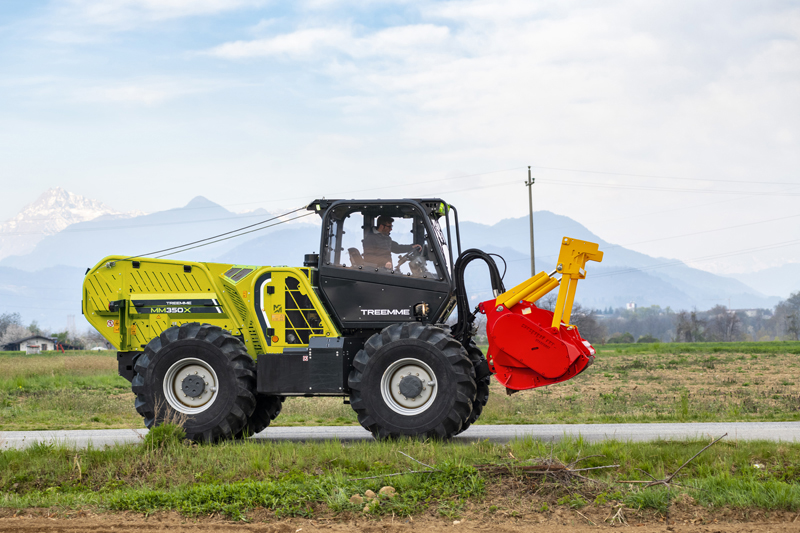

The TREEMME X Merlo Tool Handler tractor is ideal for those looking for a multi-purpose machine that is not afraid of demanding and simple to use work.

TREEMME X  | Tool Handler Tractor | Merlo S.p.A.

Treemme_forestale_header

112_12-04-2023

014_12-04-2023

006_12-04-2023

088_12-04-2023

ROPS FOPS and OPS certified thanks to the use of shatterproof lenses. Automatic air-conditioning as standard and air-suspension seat with optional heated high-back version. Positioned on silent blocks and foldable when needed for maintenance.


The four drive wheels are all steerable with hydraulic power assistance. Four steering modes are available: (on the front wheels, right turn, crab steering and optionally on the rear wheels only).


Four steering modes

The four-wheel drive wheels are all steered with hydraulic servo assistance. There are four steering modes: on the front wheels, vault corrected, crab steer and optionally on the rear wheels only.

At the rear of the chassis, the tractor can be fitted with a radio-controlled hydraulic winch with a towing capacity of 12.5 t, alternating with a Cat. 2 lift according to customer requirements.


Optional hydraulic recovery winch or rear linkage

At the rear of the chassis, the tractor can be fitted with a radio-controlled hydraulic winch with a towing capacity of 12.5 t, alternating with a Cat. 2 lift according to customer requirements.

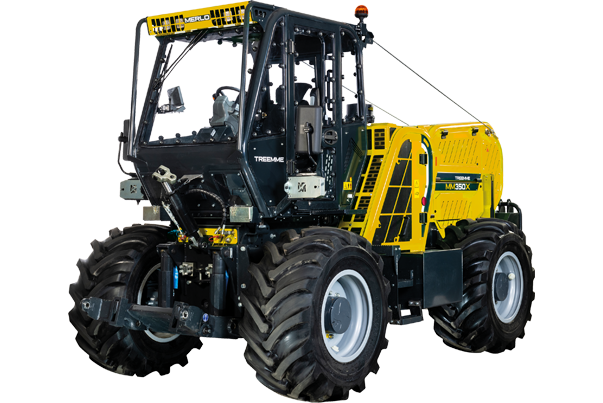

Front linkage type Cat. 2 and 3. Continuous supply of hydraulic oil to feed the front attachments at a maximum pressure of 420 bar. No. 3 auxiliary hydraulic outlets, one of which is proportional for operating the front top link.


Front tool carrier

Front linkage type Cat. 2 and 3. Continuous supply of hydraulic oil to feed the front attachments at a maximum pressure of 420 bar. No. 3 auxiliary hydraulic outlets, one of which is proportional for operating the front top link.

603X403_Forestry_Machine_Header_Treemme

Forestry_Tractore_Treemme_Merlo_3

Forestry_Tractore_Treemme_Merlo_1

Forestry_Tractore_Treemme_Merlo_2

Forestry_Tractore_Treemme_Merlo_4

Trattori Forestali

The new cab, with its generous dimensions and mounted on silent-blocks that drastically reduce vibrations, guarantees maximum comfort and optimal visibility for the operator.

Silent and comfortable

The driver's seat is at an elevated position to offer better visibility over the work area. The high-quality seat offers superior comfort.

Exclusive comfort

The best workplace

Comfort

The entire range is equipped with hydrostatic transmission, which makes working simpler and more precise. In addition, oil-immersed disc brakes ensure better operating efficiency, also reducing the risk of fire when working in dry and dusty environments.

Simple and precise operations

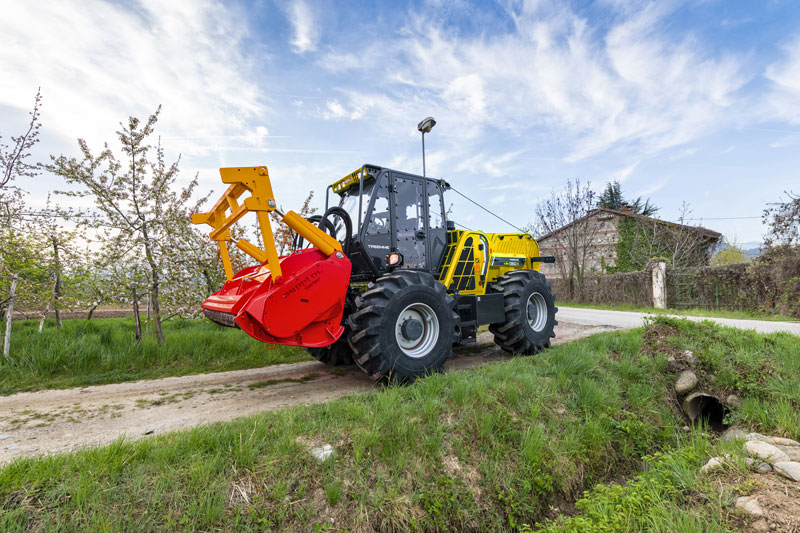

Countless hydraulically operated devices enable forest maintenance operations to be effective and profitable. Mulchers for the creation and maintenance of firebreaks and buffer zones for high-voltage power lines and gas pipelines, reclamation systems, stump grinders for root removal, chippers for shredding biomass wood and many other different pieces of equipment such as ploughs and snow turbines. All attachments can be equipped with quick-coupling hydraulic connectors.

Effectiveness and profitability

Simpler and smarter

Efficiency

The four driving wheels are all steered with hydraulic power assistance. Four steering modes are available (on the front wheels, pivot steering, crab steering and - optionally - on the rear wheels only).

Easy drive

The hydraulic operation of the attachment offers innumerable competitive advantages compared to traditional systems that use mechanical devices. The attachment in use can work in positions that go beyond the maximum angles allowed by the cardan shafts; there are no mechanical parts subject to breakage and, as a result, any recoil of the kinematic chain is excluded. Furthermore, the operator can reverse the attachment's rotation direction through a simple electro-hydraulic control in the cab.

The hydraulics

The rear of the chassis can be fitted with a radio-controlled hydraulic winch with a capacity of 12.5 tonnes.

Equipment

The high ground clearance makes it possible to operate even in extreme off-road conditions, making this model powerful and versatile.

Versatility

Everything at your fingertips

Performance

The chassis structure, made of high-strength steel, is fully armoured and equipped with removable inspection hatches that allow the inspection and replacement of machine elements in the event of faults or malfunctions. From the visual point of view, the entire lower surface of the chassis looks completely flat and free of openings and handholds that otherwise would be an easy access for brambles or branches. The result is a range of machines that are particularly efficient and robust in all applications.

Total resistance

The Treemme cab is ROPS, FOPS (level II for specific markets) and OPS certified thanks to its 8 mm thick shatterproof windows, which ensure operator protection on all sides of the machine.

Certified cabins / Certified protection

This model has been designed for the best performance in the most demanding work areas. Headlights, air inlets, radiators, electrical wiring and hydraulic pipes can be protected with special steel guards
